UBI POE Injector,24VDC,30W POE-24-30W

Ubiquiti
85,14 RON
Cost Livrare:
EasyBox - 14 Ron Gratuit >200 Ron
Curier Rapid - 19 Ron Gratuit >200 Ron
Ubiquiti
Stoc 48
Cod produs POE-24-30W
EAN 810354023545
Adauga la Favorite

Descriere

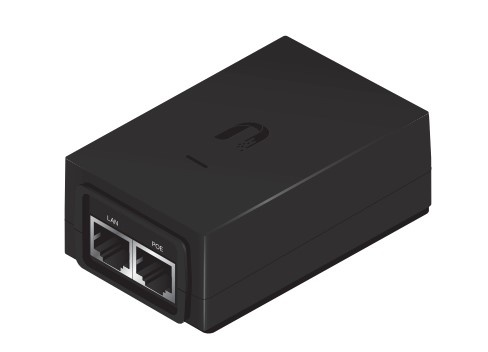

POE Injector, 24VDC, 30W

Model POE-24-30W-G-WH
Dimensions 94 _ 60 _ 33mm (3.70 x 2.36 x 1.30")
Weight 156 g (5.5 oz)
Output Voltage 25VDC @ 1.25A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 83+%
Output Ripple 1% Max.
Switching Frequency 65kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 _s) Power
Peak Pulse Current 36A (10/1000 _s) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
